4k HDBaseT - Transmitter with 3 Inputs HDMI / USB-C / DisplayPort
HDBaseT Transmitter / HDMI Extender
- Transmission of HDMI, USB-C and Display Port via HDBT up to 70m
- Supports 10.2Gbps for 4k UHD, FHD 1080p/60Hz resolutions via Cat6 cables
- PoC capable
- RS232 programming
- IR Pass through control
- Wall installation device according to EU standard
- EDID By-Pass and programmable
- HDCP 1.4 & 2.2 support
- chat Read user reviews (1)
- edit Write your review
4k HDBaseT Transmitter

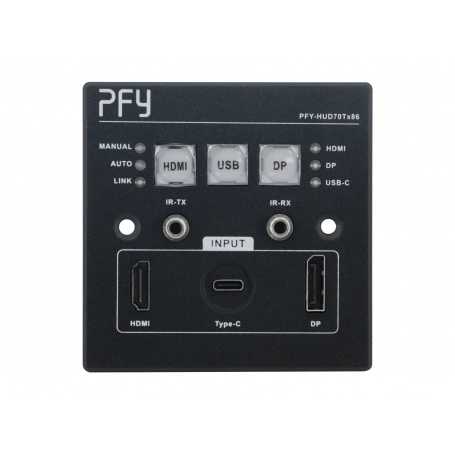

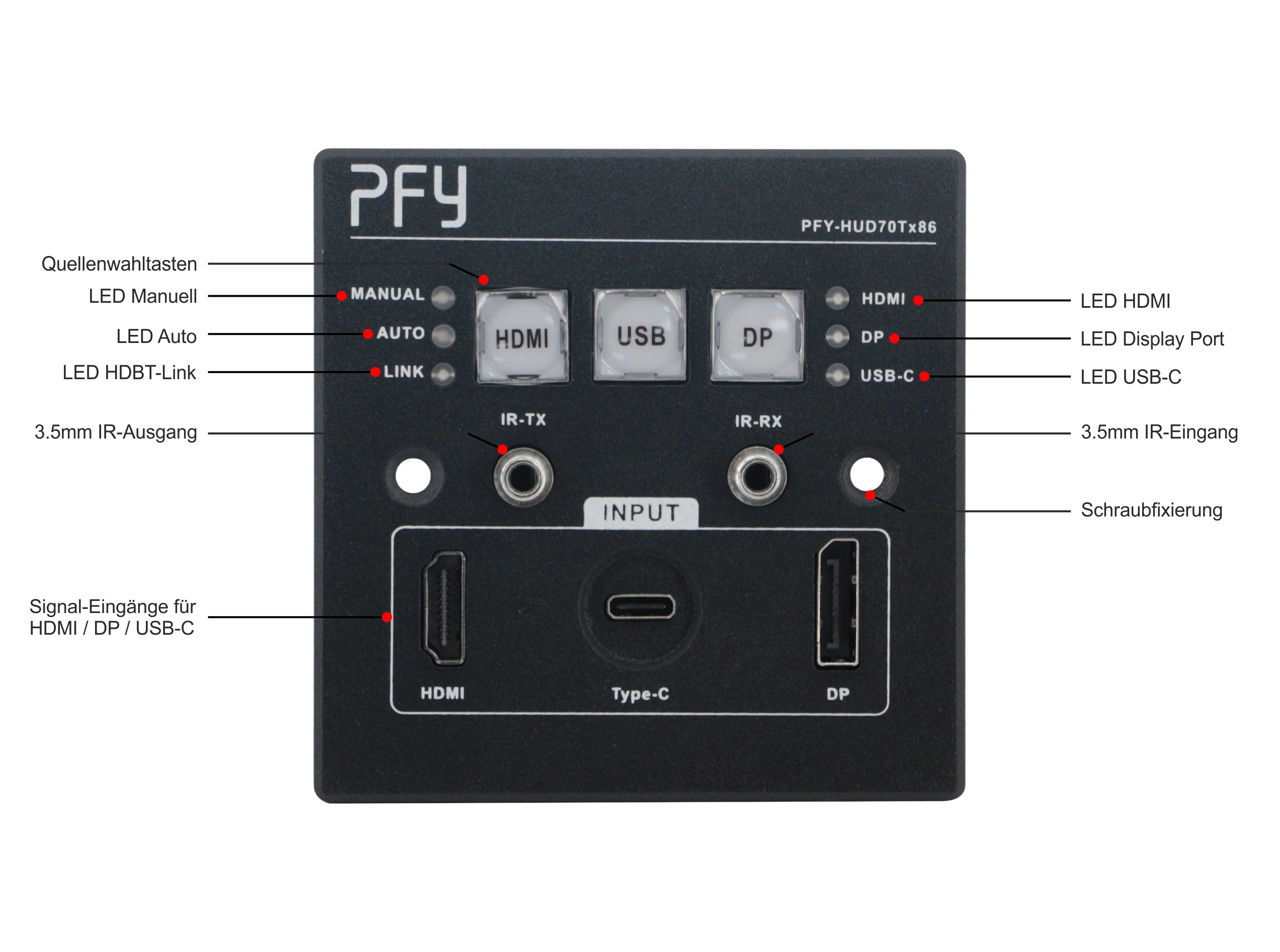

The PFY-HUD70Tx86 is a latest generation HDBaseT converter that converts HDMI, DisplayPort and USB-C signals into an HDBT signal and transmits them losslessly over a distance of up to 70m. The transmitter supports POC, which can come from a matrix or other HDBT device (receiver). It can be controlled or configured via software via the USB-C port on the back. The additional RS232 port can be connected to an external control panel, allowing you to adjust the parameters or send additional commands to your device, such as a TV to control the volume. With the IR-Tx and IR-Rx ports on the front, you can even use the remote control to send commands over a long distance of up to 70m.The commands are transmitted to the HDBT receiver via the CAT6 cable. No additional cables required. The desired signal source can be selected using the individual buttons. This transmitter is designed to be wall mounted to EU standards, allowing for easy installation.
Highlights
PFY HDBaseT Transmitter Highlights
- Transmission of HDMI, USB-C and Display Port via HDBT up to 70m
- Supports 10.2Gbps for 4k UHD, FHD 1080p/60Hz resolutions via Cat6 cables
- PoC capable (power over cable)
- RS232 programming
- IR Pass-Through
- Wall installation device according to EU standard
- EDID By-Pass
- HDCP 1.4 & 2.2 support

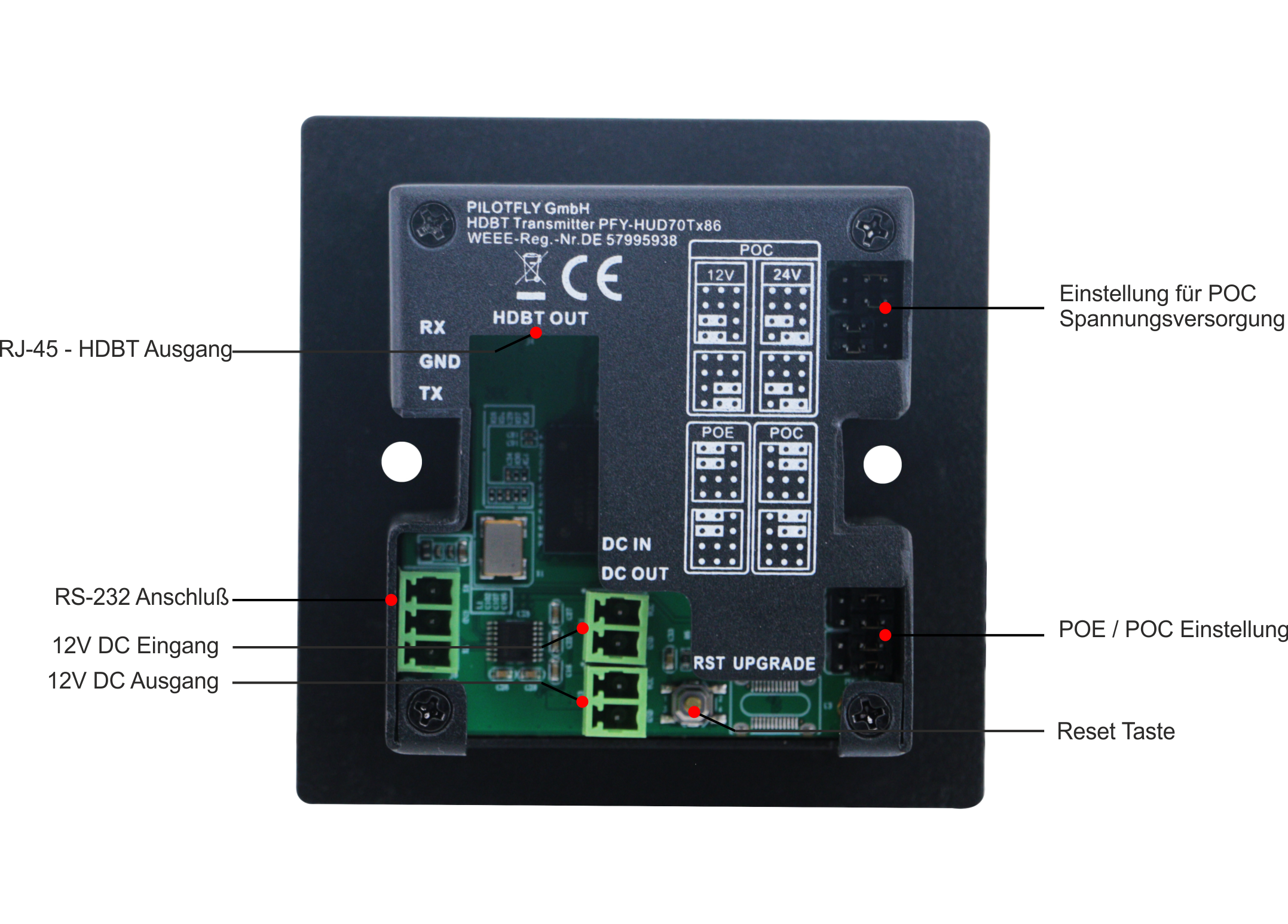

- Additional DC output on the rear to supply external devices like AV Controller with just one power supply.
In the Package
What is in the box of PFY's HDMI Extender?
- 1 x HDBaseT Transmitter
- 1 x external Power supply
- 1 x Quick Guide
- Product material
- Metal
- Weight
- 260g
- Color
- black
- Dimension [mm]
- 86 x 86 x 40mm
- Power consumption
- 3 Watt
- Operation Voltage
- 12V
- HDMI Standard
- 1.4
- Operation temperature
- -10 ~50°C
- HDCP Standard
- 1.4
- Remote Control
- RS232 bidirectional
- Video Inputs
- HDMI, USB-C, DisplayPort
- Video Output
- RJ45 jack (CAT6 cable)
- Screw holes for fixation
- 60mm
Reliable solution for class rooms
or Meeting
rooms.
Frequently asked questions
The PFY Transmitter supports a max. resolution of up to 4k 30Hz at a distance of 30m. The max. resolution at a distance of 70m is 1080p 60Hz.
You connect the device via USB-C cable to your PC and open the software. You can programm the USB and the DP button with an additional command. You have also in total 10 virtual control buttons which can be set with individual HEX or ASCII Code to control your sink device like Vol- / Vol+ or change the inputs.
Apart from this you can also change the EDID Table. The Transmitter has pre-definded EDID tables integrated. Default EDID Table supports the standard VESA Timings.
You need to connect the device to the software. Then you are able to set a command for USB and DP buttons. Once this is set you can use it by pressing the button for 2sec.
The USB-C input follows the USB-C 3.1 Gen2 Standard. Please be aware that you use the correct USB-C cable specified with this standard and ensure that the cable lenght does not exceed 3m.
Press & Hold the HDMI Button for 2 sec to switch between Auto / Manual.
