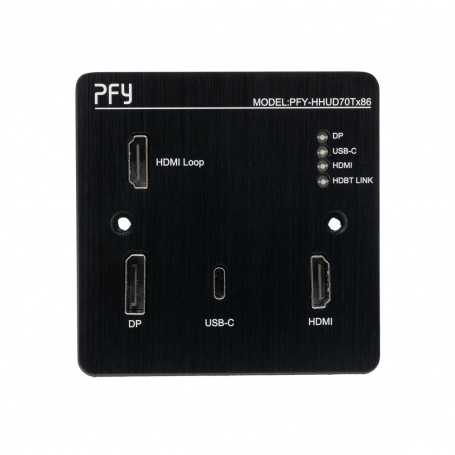

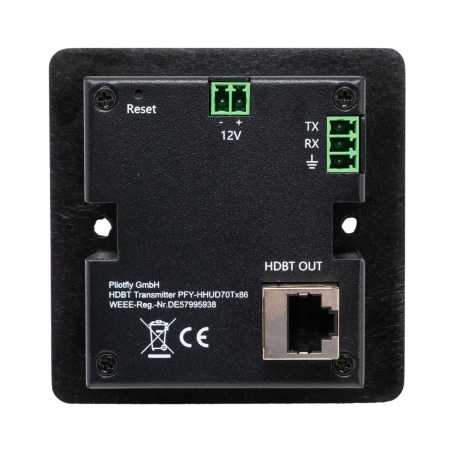

4k HDBaseT - Wall Mount Transmitter with 3 Inputs HDMI - USB-C - DisplayPort
HDBaseT Transmitter / HDMI Extender
- Transmission of HDMI, USB-C and Display Port via HDBT up to 70m
- Supports 10.2Gbps for 4k UHD, FHD 1080p/60Hz resolutions via Cat6 cables
- PoC capable
- RS232 programming
- HDMI Loop Function
- Wall mount installation device according to EU standard
- Remote Control via RS232 or Software
- EDID By-Pass and programmable
- HDCP 1.4 & 2.2 support
4k HDBaseT Transmitter

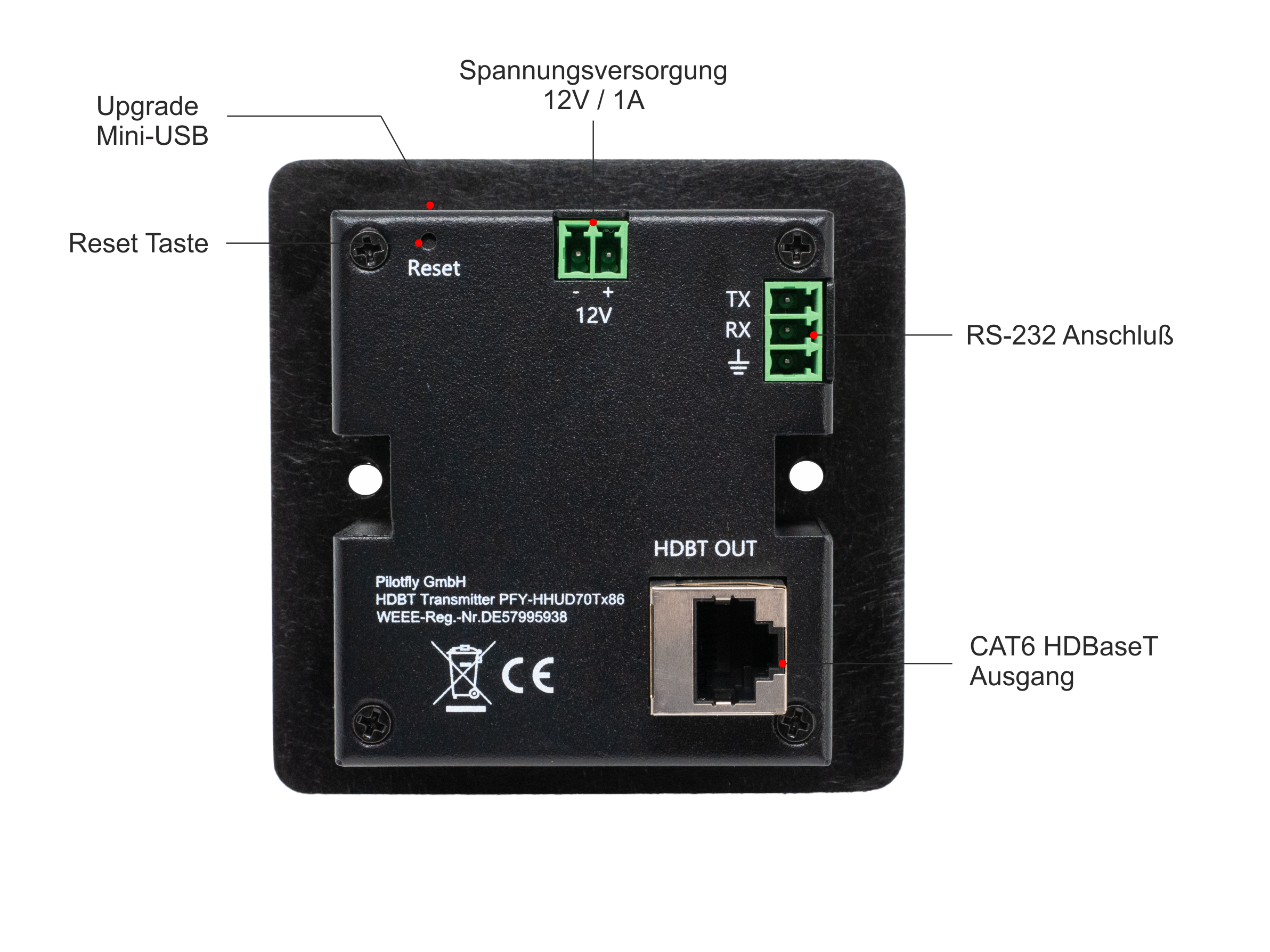

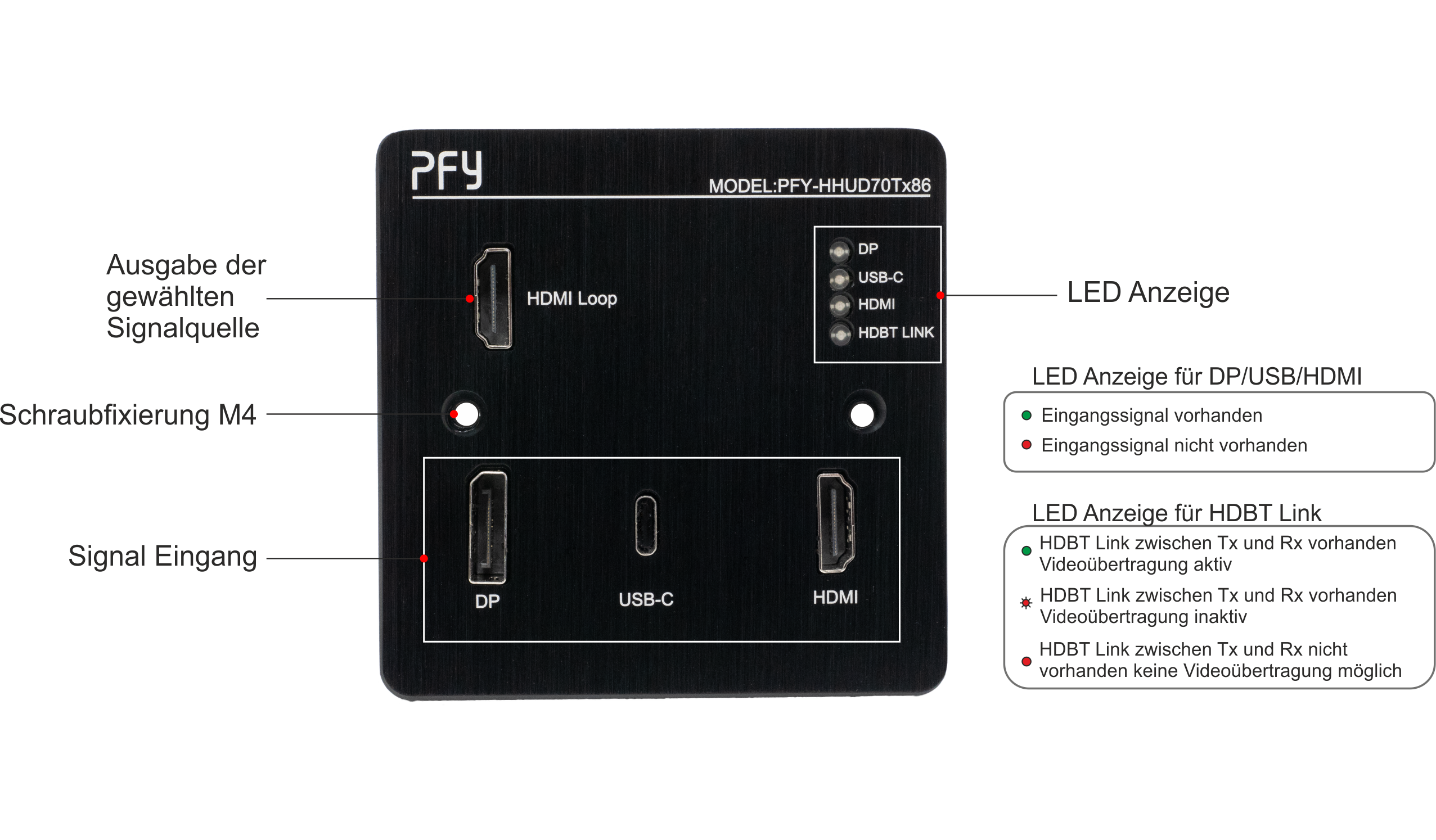

The PFY-HHUD70Tx86 is a latest generation HDBaseT converter that converts HDMI, DisplayPort and USB-C signals into an HDBT signal and transmits them losslessly over a distance of up to 70 m. The transmitter supports PoC, so only one power supply is necessary for the transmitter and receiver unit. The device can be controlled or configured via software via the RS232 connection on the back. The RS232 port can be connected to an external control panel, such as the PFY-CTR0108 media control, to control the inputs remotely. With the additional HDMI port you have the option of connecting an additional display that mirrors the input signal that is transmitted via HDBT. The device is designed for wall mounting in accordance with EU standards and therefore enables quick and easy installation.
PFY HDBaseT Transmitter Highlights
- Transmission of HDMI, USB-C and Display Port via HDBT up to 70m
- Supports 10.2Gbps for 4k UHD, FHD 1080p/60Hz resolutions via Cat6 cables
- PoC (Power over Cable)
- Remote control via Software (RS232 port)
- HDMI Loop support
- Wall installation device according to EU standard
- EDID By-Pass
- HDCP 1.4 & 2.2 support
What is in the box of PFY's HDMI Extender?
- 1 x HDBaseT Transmitter
- 1 x external Power supply
- 1 x Quick Guide
Example schematic
- Product material
- Metal
- Weight
- 260g
- Color
- black
- Dimension [mm]
- 86 x 86 x 40mm
- Power consumption
- 12 Watt
- Operation Voltage
- 12V
- HDMI Standard
- 1.4
- Operation temperature
- -10 ~50°C
- HDCP Standard
- 2.2
- Remote Control
- RS232 bidirectional
- Video Inputs
- HDMI, USB-C, DisplayPort
- Video Output
- RJ45 jack (CAT6 cable)
- Screw holes for fixation
- 60mm
Frequently asked questions
The PFY Transmitter supports a max. resolution of up to 4k 30Hz at a distance of 30m. The max. resolution at a distance of 70m is 1080p 60Hz.
You connect the device via RS232 port to your PC and open the software. In the Software you are able to change the inputs, enable the Auto-Switch function or you can change the EDID Table. The Transmitter has pre-definded EDID tables integrated. Default EDID Table supports the standard VESA Timings. You can import your own EDID or you can get the EDID Data from your sink device and load it to the transmitter.
The USB-C input follows the USB-C 3.1 Gen2 Standard. Please be aware that you use the correct USB-C cable specified with this standard and ensure that the cable lenght does not exceed 3m. By a distance up to 5m we strongly suggest to use a USB-C 3.2 Gen2 standard cable which supports 10Gbps / 100W.
By default the Auto switch function is disabled. It can be enabled via Software.
